For Pipe 3-Layer (3LPE) Heat-Shrinkable Wrap-around Sleeve With Primer ISO21809-3:2016 FJC14B-1/ FJC14B-2 Technical Data Sheet | ||||
Product Name | Heat-Shrinkable Wrap-around Sleeve With Primer、HT Heat-Shrinkable Wrap-around Sleeve (Open type sleeves with closure patch)、Heat-Shrinkable Wrap-around Sleeve FJC14B-1 / FJC14B-2 | |||
System Description | High Temperatures 3-Layer (3LPE) Heat-Shrinkable Wrap-around Sleeve is superior performance heat shrinkable products designed for corrosion protection on field applied girth-weld joints of buried and exposed steel pipelines operating up to 60°C / 80°C The inner layer is two-components epoxy primer which coated on steel pipe，Intermediate level is special hot melt adhesive;Outer layer is modified radiation crossing linking polyethylene backing. High Temperatures 3-Layer (3LPE) Heat-Shrinkable Wrap-around Sleeve is developed by this Company on the basis of the original product. It is the first of the same kind in China. Currently, the product is well above the domestic anticorrosive professional standards and reaches the standard requirement of ISO21809-3. High Temperatures 3-Layer (3LPE) Heat-Shrinkable Wrap-around Sleeve product uses the polyethylene produced by ATOFINA of France and many other auxiliary materials as base materials. The mechanic performance targets such as indentation resistance, impact resistance and tensile strength have reached ISO21809-3 standards. Heat shrink wrap Sleeves provide great corrosion protection, Superior resistance to Cathodic Disbandment and excellent durability against abrasion and chemical attack. The result is effective, good performance of sealing, wide application, easy to operate and preheating temperature,,long term protection against corrosion. | |||
Product Features | High Temperatures 3-Layer (3LPE) Heat-Shrinkable Wrap-around Sleeve is a wraparound sleeve with a separate closure. Cross-linked backing provides superior abrasion, mechanical and chemical attack resistance. High performance adhesive provides excellent resistance to Cathodic Disbondment to ensure long-term corrosion protection Just-in-time customized lengths allow bulk rolls to be field cut top protect any pipe size Open sleeve configuration allows the product to be applied after the pipeline has been welded and cleaned. | |||
Executive Standard | ISO21809-3:2016 Petroleum and natural gas industries — External coatings for buried or submerged pipelines used in pipeline transportation systems — Part 3: Field joint coatings | |||
Shelf Life | 24 Months | |||
Selection Range | Thickness: 2.0mm、2.2mm、2.3mm、2.5mm、2.7mm、2.8mm、3.0mm、 Width: 450mm、500mm、550mm Length: L=π×D×1.07 +120(mm), D≤700mm. L=π×D×1.07 (mm), D＞700mm | |||
Package Specification | Cartons+Pallets | |||
Technical Index Property | Test Standard | Heat-Shrinkable Wrap-around Sleeve FJC 14B-1 60℃ | Heat-Shrinkable Wrap-around Sleeve FJC 14B-2 80℃ | |
Thickness – Sleeve Layers, mm | ISO21809-3 Annex B | ≥specified minimum value | ≥specified minimum value | |
Holiday detection at 5 kV/ mm + 5 kV | ISO21809-3 Annex C | no holiday | no holiday | |
Impact resistance (holiday detection at 5 kV/mm + 5 kV), at 23 °C, J/mm | ISO21809-3 Annex D | 6.3 | 7.7 | |
Indentation resistance: Pressure Tmax, N/mm2 Residual thickness, mm Amount of penetration, mm | ISO21809-3 Annex E | 10.0 0.7 - | 10.0 0.8 - | |
Cathodic disbondment at 28 days at 23 °C, mm Tmax, limited to 95 °C, mm | ISO21809-3 Annex G |
4 8 |
4 8 | |
Peel strength at 10 mm/min to pipe surface and to polyolefin plant coating at 23 °C, N/mm Tmax, N/mm | ISO21809-3 Annex H |
5.3 0.3 |
5.7 0.3 | |
Peel strength at 10 mm/min to pipe surface and to polyolefin plant coating after 100- day hot-water immersion test at Tmax limited as per Annex I, at 23 °C, P100/P0 | ISO21809-3 Annex I ISO21809-3 Annex H | 0.84 | 0.86 | |
Lap shear strength a, 10mm/ min at 23 °C, N/mm2 Tmax, N/mm2 | ISO21809-3 Annex J |
2.3 0.09 |
4.3 0.42 | |
Thermal ageing resistance (aged at Tmax + 20 °C), % | ISO21809-3 Annex M | 86 | 86 | |
—Elongation at break E100/ E70), at 23 °C —Peel strength to pipe sur-face (P100/P70), at 23 °C | ISO21809-3 Annex M |
0.86 |
0.85 | |
Bursting strengt hof rein-forced backing (B100/B70), at 23 °C | ISO21809-3 Annex O | 0.85 | 0.88 | |
Bursting strength of rein-forced backing, at 23 °C, at 2000N | ISO21809-3 Annex O | -- | -- | |
Oxidation induction time on the backing at 220 °C (intercept in the tangent method), min | ISO11357-6 | 20 | 20 | |
Thermal stability at 130°C for 50 weeks, installed system, at 130 °C, visual | ISO21809-3 Annex | -- | -- | |
Installation Instructions | I. Construction tools: flame spray gun, pressure roller, wire brush, rag, etc. II. Installation steps: 1. Sandblasting and cleaning the joint part: draw the joint installation part at the joint, and remove the water and soil at the joint installation part. 2. Preheating and sanding: preheat the pipe wall at the joint installation position to about 70 ℃ and sanding along the circumference. 3. Apply epoxy primer 4. The HSS shall be used to cover the pipe, the two ends of the pipe to be connected shall be aligned horizontally, and the gap between the two sections shall be kept as small as possible. When the gap is greater than 15mm, the end face of the pipe shall be treated to minimize the gap. 5. Heat evenly along the circumference from the middle, make it shrink completely, and then extend to both ends for heating. When heating, the allowable heating temperature of the heat shrinkable zone shall not exceed 250 ℃, and pay attention to uniform use of fire. After all shrinkage, reheat the uneven surface to make it completely flat. After the whole heating, turn down the flame and reheat again to make the hot melt adhesive overflow fully. 6. During the heating process, the joint is rolled several times with the pressure roller, and the fusion lap joint is mainly rolled to eliminate bubbles. III. Installation quality judgment: 1. The heat shrinkable belt shrinks evenly along the circumference, and the surface is smooth without wrinkles, bubbles, voids, scorching and cracking. 2. The adhesive layer at the edge of the heat shrinkable zone is fully melted and evenly overflowed. IV. Note: 1. When the connected pipe needs to be moved, it should be moved after the joint is cooled to below 50 ℃, and the position with less stress at the joint should be kept as far as possible. 2. The heat shrinkable tape after installation shall be covered to avoid direct sunlight. When the temperature of the joint is too high, the cooling measures (such as watering, etc.) should be taken. | |||
 | ||||

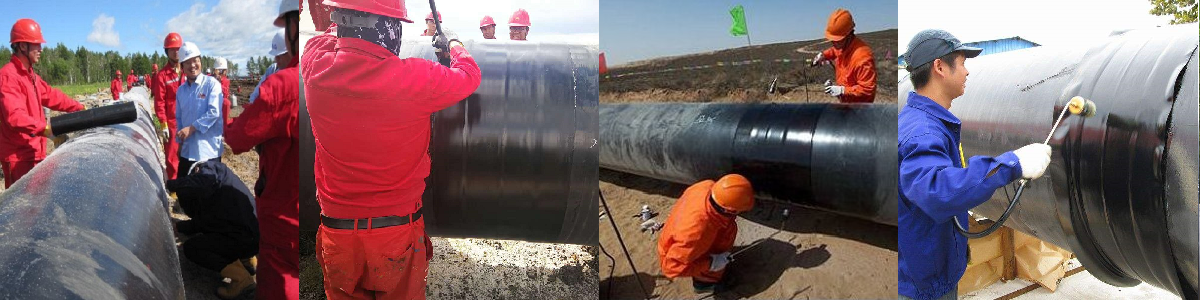

Installation Picture
| ||||
 | ||||
Apply Pictures
| ||||
Manufacturer: China Sichuan Forever Radiation Technology Co.,Ltd, The main products are 3LPE Heat Shrinkablhke Sleeve, HDD Pipeline Shrinkable Sleeve, 2LPE Heat Shrinkable Tape, 3LPE Heat Shrinkable Tubular Sleeves, Polyethylene Pressure-sensitive Adhesive Shrinkable Sleeve, 3LPE & 3LPP Heat Shrinkable Wrapping Tape, Heat Shrinkable Water-proof End Cap, 3LPP Heat Shrinkable Sleeve, Epoxy Primer, Non-crystalline Low-viscosity Polyolefin Based Visco-Elastic Tape, Repair Patch, PE Melt Stick, Heat Shrinkable 3LPE Tape For Pre-insulated Pipe, OEM Heat Shrinkable Material Service, Auto-Matic and Manual Type Installation Tools, Irradiation Service, Third Party Inspection Service.
